Description

Unique and dynamic design, unmatched construction, high flow pressure caring capability perfectly made to withstand rugged requirement of micro irrigation field makes one pc top entry ball valve as a leading control valve in this field. The handle and spindle which are core parts of ball valve are made of steel which deliver more strength, toughness and

Technical Data

• Construction : One Piece Body
• Design : Top Entry
• Size Range : 32/40/50/63/75/90 mm.( Screwed/Plain end)
• Max working temp. : 90ºC (Consistently)
• Gasket/Stem Seal : Nitrile
• Test Pressure : 10Kg/cm²

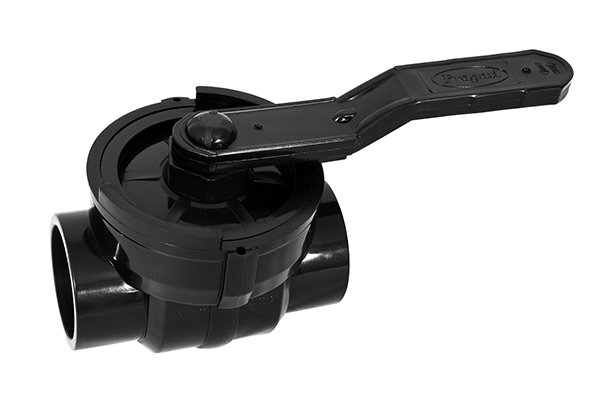

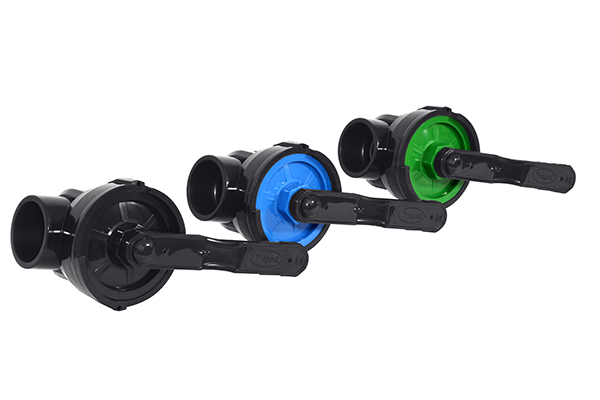

Special Features of One Piece Top Entry Ball Valve

• One Piece Top Entry ball valve is manufactured from polypropylene, a chemically inert thermoplastic.
• One piece ball valve is specially suited for Drip Irrigation System.
• One-piece rugged body eliminates joints / unions / Gaskets / Fasteners and consequently eliminates leakage and corrosion.
• On line maintenance possible as all internals can be replaced without removing the valve from the pipe-line.
• Since this ball valve contains no metal parts, failure due to corrosion eliminated.
• Carbon black and UV stabilizers resist ultraviolet rays and prevent degradation of PP in sun light exposure.
• Proper care taken for full strength and leakage proof manufacturing design.
• Every piece is tested before dispatch. Hydraulically tested at 10kg. /cm².
• Approved and used by many known Drip Irrigation manufacturers.

Typical Application

• Irrigation System
• Horticulture and Agriculture
